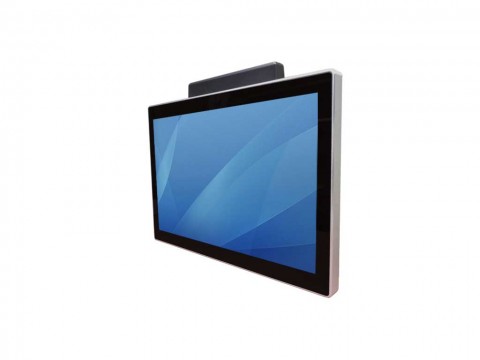

PFS-12WA7 12.1“ Ultra- Slim & Flat Panel System (Android 7.0, ARM platform).. Product #: PFS-12WA7 In Stock

PFS-12WA7

12.1“ Ultra- Slim & Flat Panel System (Android 7.0, ARM platform)
Product Code: PFS-12WA7
Availability: In Stock
Document file size Download Link
PFS-12WA7 964.03KB Download
Panel Specification
Size/ Type 12.2” (16:9) TFT LCD
Resolution 1280 x 800
Brightness 400 (cd/m2)
Contract Ratio 1000 : 1 (typ.)
Max. Colors 262K (6 bits/color)
Viewing Angle -88~88 (H) ; -88~88 (V)
Touch Screen P-cap multi touch
Active Area 261.2 (H) x 163.2 (V)
System
System Memory LPDDR4 1333MHz 2GB
Storage eMMC 16GB, 1 x Micro SD slot (up to 64GB)
OS Support Android 7.0
Ethernet Gigabit controller RTL8211FSI
CPU Cortex®- A72 Dual-Core 1.8 GHz+ Quad-Core Cortex®- A53, up to 1.5GHz
Graphic SoC Integrated Mali-T764 GPU
WLAN IEEE 802.11 b/g/n/ac 2x2
Antennas Dual external antennas
Bluetooth Bluetooth 4.2
Input / Output
Serial Ports 1 x RS232
USB Ports 1 x USB 3.0, 1 x USB 2.0, 1x USB OTG
Ethernet 1 x RJ45 GbE LAN
VGA N/A
HDMI 2 x HDMI output
Power 9~36V DC Input
Buttons On /Off , Reset
Power Specification
Power Consumption 13 watts (typical)
Power Input 9~36V DC Input
Environment Specification
Operating Temperature -10 deg. C to 60 deg. C
Operating Humidity 10% to 95% (Non Condensing)
IP Level Full-IP65 except I/O
Storage Temperature -30 deg. C to 70 deg. C
Vibration MIL-STD-810G Method 514.6C-3
Shock MIL-STD-810G Method 516.6
Net Weight 2.5 KG (Identity)
