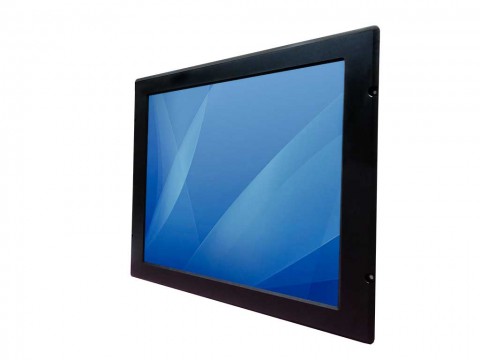

PPM-19RP-RK 19” Panel Mount / Flush Mount / VESA Mount.. Product #: PPM-19RP-RK Pre-Order

PPM-19RP-RK

19” Panel Mount / Flush Mount / VESA Mount
Product Code: PPM-19RP-RK
Availability: Pre-Order

•Intel Apollolake platform

•Trio mounting type (Panel Mount / Flush mount / VESA Mount)

•Low power consumption

•Front IP65

•Intel Apollolake platform

•Trio mounting type (Panel Mount / Flush mount / VESA Mount)

•Low power consumption

•Front IP65

Document file size Download Link
PPM-19RP-RK 784.06KB Download
Panel Specification
Size/ Type 19” (4:3) LCD
Resolution 1280 x 1024
Brightness 400 (typ.)
Contract Ratio 1000 : 1 (typ.)
Max. Colors 16.7M
Viewing Angle -85~85 (H) ; -80~ 80 (V)
Touch Screen 5-wire resistive touch screen (Default)
System
System Memory DDR3L 1867MHz So-DIMM 4GB (max. 8GB)
Storage mSATA SSD 64 GB
Audio Codec Realtek ALC662 HD Audio Codec
BIOS AMI uEFI 128 MB Flash
OS Support Win10, Linux supported
WiFi 802.11 b/g/n/ac (optional)
Housing Material Alu. front bezel with heavy duty painted black metal sheet in rear
Ethernet Dual Intel® I210-AT GbE
CPU Intel® Apollolake x5-E3940
Graphic Integrated Intel® HD Graphics
Input / Output
Serial Ports 1 x RS232, 1 x RS232/422/485(optional)
USB Ports 2 x USB3.0, 2 x USB 2.0
Ethernet 2 x RJ45 GbE LAN
HDMI 1 x HDMI Output
Power Input 100~240V AC Input
Power Specification
Power Adapter N/A
Power Consumption 30 W(typ)
Environment Specification
Operating Temperature -10 deg. C to 50 deg. C
Operating Humidity 30% to 90% (Non Condensing)
IP Level Front IP65
Storage Temperature -30 deg. C to 70 deg. C

•Intel Apollolake platform

•Trio mounting type (Panel Mount / Flush mount / VESA Mount)

•Low power consumption

•Front IP65
