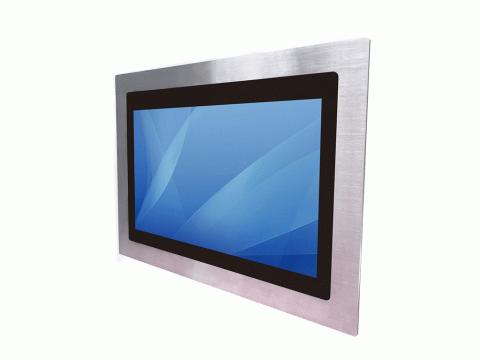

PPM-17WB-ST 17.3“ (16:9) Stainless Steel Panel Mount.. Product #: PPM-17WB-ST Pre-Order

PPM-17WB-ST

17.3“ (16:9) Stainless Steel Panel Mount
Product Code: PPM-17WB-ST
Availability: Pre-Order

•17.3”, 1920x1080 Full-HD Display

•Intel Baytrail platform

•Stainless steel front bezel

•Front IP65

•P-cap multi-touch in front

•17.3”, 1920x1080 Full-HD Display

•Intel Baytrail platform

•Stainless steel front bezel

•Front IP65

•P-cap multi-touch in front

Panel Specification
Size/ Type 17.3” LED Backlight
Resolution 1920 x 1080 @60Hz
Brightness 300 nits(default)
Contract Ratio 600 : 1 (typ.)
Max. Colors 16.7M (Colors)
Viewing Angle -85~85 (H) ; -80~ 80 (V)
Active Area 381.888 (H) x 214.812 (V)
Pixel Pitch (mm) 0.1989 (H) x 0.1989 mm (V)
System
System Memory DDR3 So-DIMM 4GB (max. 8GB)
Storage SATAII HDD 500GB or mSATA SSD 64GB
Audio Codec Realtek ALC886 HD Audio Codec
BIOS AMI 16 MB Flash
Ethernet Intel® Intel WG82574L GbE
CPU Intel® Bay Trail Celeron® N2930 1.83 GHz
Graphic Integrated Intel® HD Graphics
I/O chipset Fintek F81866
Input / Output
Serial Ports 1 x RS232, 1 x RS232/422/485
USB Ports 1 x USB3.0, 3 x USB 2.0
Ethernet 2 x RJ45 GbE LAN
HDMI 1 x HDMI Output
Power 1 x 12V DC Input (wide range DC or AC input for optional)
Power Specification
Power Adapter 1 x AC/DC power adapter
Power Consumption 40 W typical, normal operation
Management VESA DPMS compliant
Power Cord Power Cord provided by region
Environment Specification
Operating Temperature -10 deg. C to 60 deg. C
Operating Humidity 10% to 95% (Non Condensing)
IP Level Front IP66/ IP69K, Rear IP20
Storage Temperature -30 deg. C to 70 deg. C
Order Options
Touch 5-wire resistive touch or P-cap multi-touch
Power Input 9~36V DC Input or 110~ 240V AC Input (optional)

•17.3”, 1920x1080 Full-HD Display

•Intel Baytrail platform

•Stainless steel front bezel

•Front IP65

•P-cap multi-touch in front
