PPM-17RB-ST

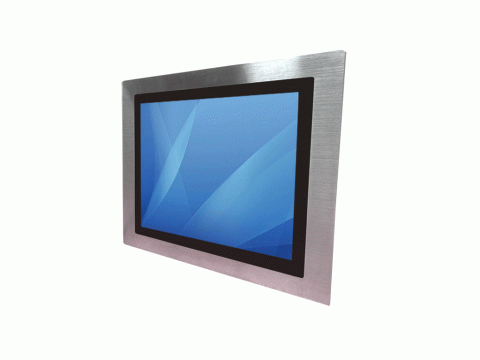

17” Stainless Steel Panel Mount Panel PC
Product Code:
PPM-17RB-ST
Availability:
Pre-Order
•17”, 1280x1024 Display
•Intel Baytrail platform
•Stainless steel front bezel
•Front IP65
•5-wire resistive or P-cap multi-touch in front
•17”, 1280x1024 Display
•Intel Baytrail platform
•Stainless steel front bezel
•Front IP65
•5-wire resistive or P-cap multi-touch in front
| Document | file size | Download Link |
|---|---|---|
 PPM-17RB-ST |
782.21KB | Download |
| Panel Specification | |
|---|---|
| Size/ Type | 17” (4:3) LCD |
| Resolution | 1280 x 1024 |
| Brightness | 300 (typ.) |
| Contract Ratio | 1000 : 1 (typ.) |
| Max. Colors | 16.7M |
| Viewing Angle | -85~85 (H) ; -80~ 80 (V) |
| Touch Screen | 5-wire resistive touch screen (Default) |
| System | |
| System Memory | Intel® Bay Trail Celeron® N2930 1.83 GHz |
| Storage | SATAII HDD 500GB or mSATA SSD 64GB |
| Audio Codec | Realtek ALC886 HD Audio Codec |
| BIOS | AMI 16 MB Flash |
| Mounting Type | Panel mount |
| Housing Material | Stainless steel front bezel with heavy duty metal plate in rear |
| Ethernet | Intel® Intel WG82574L GbE |
| Graphic | Integrated Intel® HD Graphics |
| I/O chipset | Fintek F81866 |
| Input / Output | |
| Serial Ports | 1 x RS232/422/485 (default RS232),1x RS232 |
| USB Ports | 1 x USB 2.0, 1 x USB 3.0 |
| Ethernet | 2 x RJ45 GbE LAN |
| VGA | N/A |
| HDMI | 1 x HDMI Output |
| Power | 12V DC Input |
| Power Specification | |
| Power Adapter | 1 x AC/DC power adapter |
| Power Consumption | 30 W(typ) |
| Environment Specification | |
| Operating Temperature | -10 deg. C to 55 deg. C |
| Operating Humidity | 30% to 90% (Non Condensing) |
| IP Level | Front IP65 |
| Storage Temperature | -20 deg. C to 70 deg. C |
•17”, 1280x1024 Display
•Intel Baytrail platform
•Stainless steel front bezel
•Front IP65
•5-wire resistive or P-cap multi-touch in front
